COMPLETE V-SERIES
The robust and stable rotating mechanism of the MTS compactors, as well as the optimum design height for use in small spaces (e.g. in formwork).
MTS SOIL COMPACTOR
UNIVERSAL DEVICE
ECCENTRIC, COMPACT DESIGN
long reach and ample space to the sides
LOW CONSTRUCTION HEIGHT
use in small spaces, e.g. in formwork
UNIQUE ADVANTAGE: DOCUMENT ASSISTANT
eyelets to be attached on each side
LONG LIFETIME
high pressure resistance of drive motors
CONTROLLED HYDRAULIC FLOW
constant drive power
OPEN CONSTRUCTION
elimination of sites that accumulate contamination
LEAKAGE PROTECTION VALVE AND HYDRAULIC FLOW CONTROL VALVE
ensure a high level of safety
OPEN CONSTRUCTION
elimination of sites that accumulate contamination
CLEVER SOLUTION: FORKLIFT ATTACHMENT
easy to transport using a forklift truck
OPTIONAL: MECHANICAL PIVOTING MODULE
‘joint’ of the excavator arm
ROBUST MTS SWIVEL MECHANISM
no uncontrolled rotation, use of plain bearing
DOCUMENT BOX
includes all the documents foreseen for the installed device
HIGH OR STRONG POWER: OPERATING MODE X
selection of frequency and impact force is possible directly from the excavator
UNIQUE ADVANTAGE: THICKENING ASSISTANT
reports the intended thickening effect
OPTIMALLY POSITIONED RUBBER SHOCK ABSORBERS
greater durability, greater relative efficiency
GREATER THICKNESS OF MOUNTING PLATE
more effective vibration damping
PROTECTED HAND LEVER POSITION
for selecting the work function
OPTIONAL: INTERCHANGEABLE ADAPTER
changing the mounting plate in seconds
MTS ROTARY MECHANISMS (R6, R9, R18)
They facilitate precise positioning in areas with difficult access.
Maximum self-locking
No uncontrolled rotation of the soil compactor
No maintenance needed
Self-lubrication
Robust and simple construction
Maximum stability during operation
Secure positioning
Optimum gear ratio, high torque
TECHNICAL SPECIFICATIONS:
| ROTARY MECHANISM | MTS R6 | MTS R9 | MTS R18 |
|---|---|---|---|
| Max. Clamping Torque (Nm) | 6000 | 9000 | 18 000 |
| Permissible Radial Force (kN) at a Distance of 1 m | 85 | 165 | 165 |
| Permissible Axial Load (kN) | 170 | 230 | 230 |
DISPLAY WITH FOUR AUXILIARY FUNCTIONS (ASSISTANTS)
COMPACTION ASSISTANT (VA)
Declares the end of compaction
Good compaction no longer depends on a question of “feel”, because when further compaction of the ground is no longer possible, the hook symbol flashes.
FREQUENCY CONTROL (FQ)
Avoids damage
It shows the correct frequency/power and guarantees optimum compaction intensity and eliminates any damage caused by incorrect frequency selection.
BLOCKING ASSISTANT
Controls blocking
Using sensors, it checks the prescribed locking to eliminate the risk of damage and accidents.
STATIC LOAD ASSISTANT (ALA)
Controls the current static load
Indicates that too little or too much pressure has been applied to the compactor.
THREE MODES OF OPERATION
X1 – 100% impact force at 38 Hz
Standard setting for all soil types, designed for cohesive soils.
X2 – 60% percussion force at 45 Hz
For use in cable laying zone: reduced compaction force – replacing compactor-compactor.
X3 – 100% impact force at 60 Hz
Comfort setting: High frequency, less vibration of the working machine and buildings.
Suitable for cohesive and loose soils.

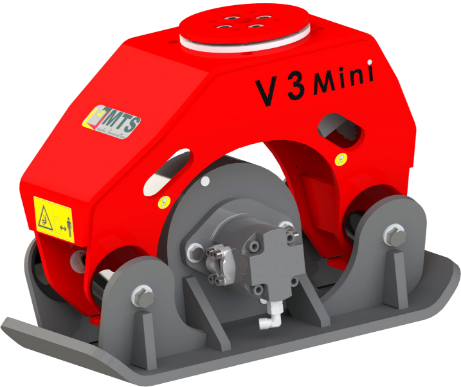

COMPACTOR V3 MINI
Excavator Weight: up to 6 tons
STANDARD EQUIPMENT
V3 mini
RECOMMENDED EXCAVATOR SIZE (TONS)up to 6 tons
WEIGHT WITH ROTARY MECHANISM (kg)105
BASE PLATE WIDTH X LENGTH (mm)290 x 600
HEIGHT (mm)410.5
FILL HEIGHT / LOAD10-30cm / 1.5 tons
ROTARY MECHANISMmechanical
OPERATING LEVEL X1
Oil Flow [l/min]: 25-60
Operating Pressure [bar]: 170-250
Centrifugal Force [kN]: 8.50
Frequency [Hz]: 38
COMPACTOR V3
Excavator Weight: up to 6 tons
STANDARD EQUIPMENT
V3
RECOMMENDED EXCAVATOR SIZE (TONS)up to 6 tons
WEIGHT WITH ROTARY MECHANISM (kg)270
BASE PLATE WIDTH X LENGTH (mm)340 x 865
HEIGHT (mm)540
FILL HEIGHT / LOAD20-40cm / 2 tons
ROTARY MECHANISMgerotor
OPERATING LEVEL X1
Oil Flow [l/min]: 35(45*)-80
Operating Pressure [bar]: 170-250
Centrifugal Force [kN]: 15
Frequency [Hz]: 38 (60+)
* for 60Hz version
COMPACTOR V4
Excavator Weight: 4-10 tons
STANDARD EQUIPMENT
V4
RECOMMENDED EXCAVATOR SIZE (TONS)4-10 tons
WEIGHT WITH ROTARY MECHANISM (kg)420
BASE PLATE WIDTH X LENGTH (mm)440 x 1045
HEIGHT (mm)690
FILL HEIGHT / LOAD30-50cm / 2.5 tons
ROTARY MECHANISMR6
OPERATING LEVEL X1
Oil Flow [l/min]: 55(70*)-140
Operating Pressure [bar]: 170-250
Centrifugal Force [kN]: 25
Frequency [Hz]: 38 (60+)
* for 60Hz version
COMPACTOR V6
Excavator Weight: 10-15 tons
STANDARD EQUIPMENT
V6
OPTIONAL ADDITIONAL EQUIPMENT
RECOMMENDED EXCAVATOR SIZE (TONS)10-15 tons
WEIGHT WITH ROTARY MECHANISM (kg)620
BASE PLATE WIDTH X LENGTH (mm)640 x 1155
HEIGHT (mm)710
FILL HEIGHT / LOAD40-60cm / 4 tons
ROTARY MECHANISMR6
OPERATING LEVEL X1
Oil Flow [l/min]: 55(70*)-140
Operating Pressure [bar]: 170-250
Centrifugal Force [kN]: 53
Frequency [Hz]: 38 (60+)
* for 60Hz version
INTERCHANGEABLE ADAPTER (WA)
COMPACTOR V7
Excavator Weight: 12-19 tons
STANDARD EQUIPMENT
V7
OPTIONAL ADDITIONAL EQUIPMENT
RECOMMENDED EXCAVATOR SIZE (TONS)12-19 tons
WEIGHT WITH ROTARY MECHANISM (kg)1070
BASE PLATE WIDTH X LENGTH (mm)730 x 1425
HEIGHT (mm)780
FILL HEIGHT / LOAD50-70cm / 5 tons
ROTARY MECHANISMR6
OPERATING LEVEL X1
Oil Flow [l/min]: 150-240
Operating Pressure [bar]: 170-250
Centrifugal Force [kN]: 68
Frequency [Hz]: 38
OPERATING LEVEL X2
Oil Flow [l/min]: 120-200
Operating Pressure [bar]: 150-310
Centrifugal Force [kN]: 25
Frequency [Hz]: 45
OPERATING LEVEL X3
Oil Flow [l/min]: 165-240
Operating Pressure [bar]: 300-310
Centrifugal Force [kN]: 45
Frequency [Hz]: 60
FREQUENCY CONTROL (FQ)
LOAD ASSISTANT (ALA)
COMPACTION ASSISTANT (VA)
COMPACTOR V7-CITY
Excavator Weight: 12-19 tons
STANDARD EQUIPMENT
V7-CITY
OPTIONAL ADDITIONAL EQUIPMENT
RECOMMENDED EXCAVATOR SIZE (TONS)12-19 tons
WEIGHT WITH ROTARY MECHANISM (kg)1080
BASE PLATE WIDTH X LENGTH (mm)730 x 1425
HEIGHT (mm)780
FILL HEIGHT / LOAD40-76cm / 5 tons
ROTARY MECHANISMR9
OPERATING LEVEL X1
Oil Flow [l/min]: 90-200
Operating Pressure [bar]: 250-310
Centrifugal Force [kN]: 45
Frequency [Hz]: 38
OPERATING LEVEL X2
Oil Flow [l/min]: 135-240
Operating Pressure [bar]: 250-310
Centrifugal Force [kN]: 50
Frequency [Hz]: 45
OPERATING LEVEL X3
Oil Flow [l/min]: 165-240
Operating Pressure [bar]: 300-310
Centrifugal Force [kN]: 90
Frequency [Hz]: 60
FREQUENCY CONTROL (FQ)
LOAD ASSISTANT (ALA)
COMPACTION ASSISTANT (VA)
INTERCHANGEABLE ADAPTER (WA)
COMPACTOR V8
Excavator Weight: 18-30 tons
STANDARD EQUIPMENT
V8
OPTIONAL ADDITIONAL EQUIPMENT
RECOMMENDED EXCAVATOR SIZE (TONS)18-30 tons
WEIGHT WITH ROTARY MECHANISM (kg)1220
BASE PLATE WIDTH X LENGTH (mm)820 x 1425
HEIGHT (mm)790
FILL HEIGHT / LOAD60-80cm / 6 tons
ROTARY MECHANISMR9, R18
OPERATING LEVEL X1
Oil Flow [l/min]: 90-200
Operating Pressure [bar]: 250-310
Centrifugal Force [kN]: 45
Frequency [Hz]: 38
OPERATING LEVEL X2
Oil Flow [l/min]: 135-240
Operating Pressure [bar]: 250-310
Centrifugal Force [kN]: 50
Frequency [Hz]: 45
OPERATING LEVEL X3
Oil Flow [l/min]: 165-240
Operating Pressure [bar]: 300-310
Centrifugal Force [kN]: 90
Frequency [Hz]: 60
FREQUENCY CONTROL (FQ)
LOAD ASSISTANT (ALA)
COMPACTION ASSISTANT (VA)
INTERCHANGEABLE ADAPTER (WA)

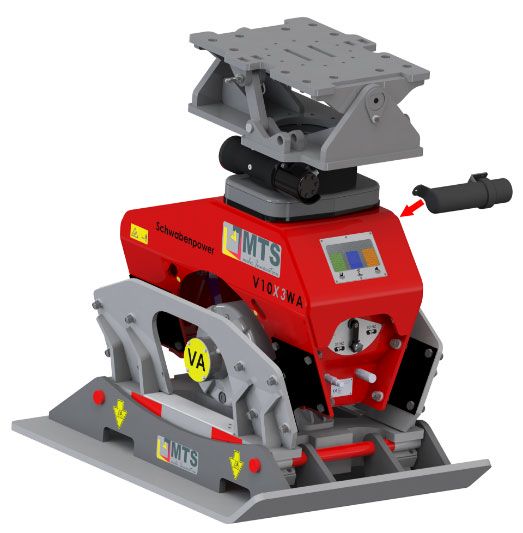

COMPACTOR V10
Excavator weight: 21-45 tons
STANDARD EQUIPMENT
V10
OPTIONAL ADDITIONAL EQUIPMENT
RECOMMENDED EXCAVATOR SIZE IN TONS21-45 tons
WEIGHT WITH ROTATION MECHANISM (kg)1310
BASE PLATE WIDTH X LENGTH (mm)940 x 1425
HEIGHT (mm)810
FILL HEIGHT / LOAD70-90cm / 7 tons
ROTATION MECHANISMR9, R18
WORKING STAGE X1
Oil flow [l/min]: 90-200
Operating pressure [bar]: 250-310
Centrifugal force [kN]: 45
Frequency [Hz]: 38
WORKING STAGE X2
Oil flow [l/min]: 135-240
Operating pressure [bar]: 250-310
Centrifugal force [kN]: 55
Frequency [Hz]: 45
WORKING STAGE X3
Oil flow [l/min]: 165-240
Operating pressure [bar]: 300-310
Centrifugal force [kN]: 105
Frequency [Hz]: 60
FREQUENCY CONTROL (FQ)
LOAD ASSISTANT (ALA)
COMPACTION ASSISTANT (VA)
EXCHANGEABLE ADAPTER (WA)
